Auto Head Polisher
Auto Head Polisher

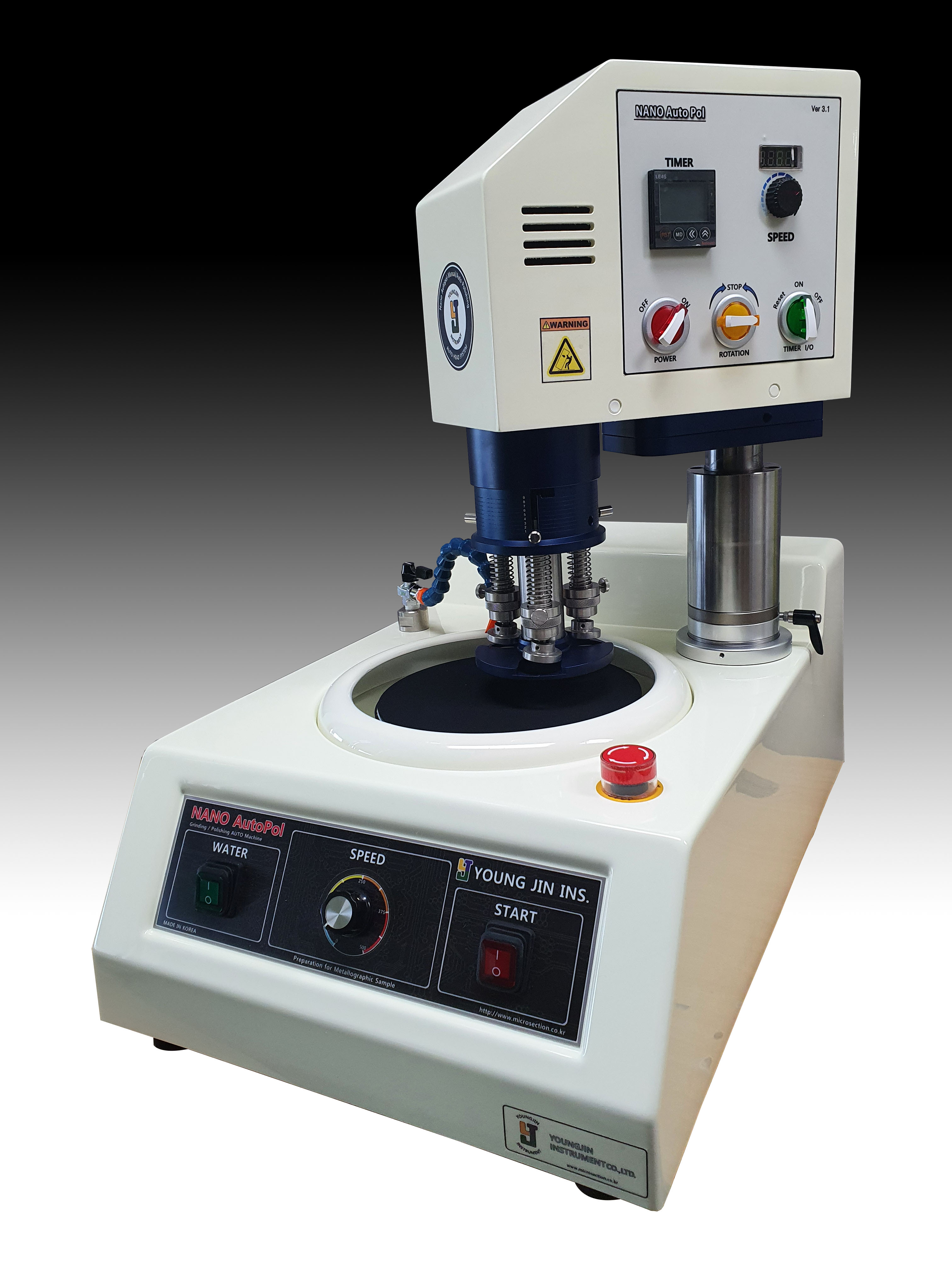

Auto Head Polisher is an automatic grinder suitable for grinding and polishing operations.
By applying an on/off switch with excellent waterproof function, work operability is simple, and intuitive and fast setting is possible through the speed control knob.
It uses materials such as ABS, SUS, and coating aluminum to increase safety and durability, and can apply a magnetic plate system as well as a general non-adhesive disc paper and Cloth (Pad), making it easy to use Disc Paper and Cloth (Pad) for Polishing without exchanging plates.

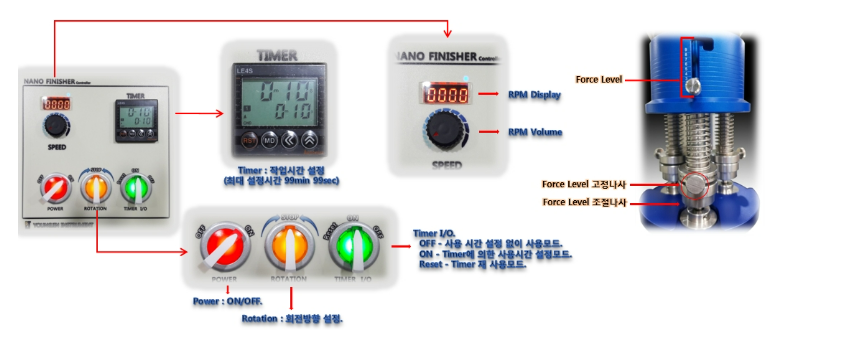

Auto Head can adjust the load for each holder and maximizes surface polishing efficiency with a tilt-up function on the sample holder.
It is possible to set the adjustment function of the work cycle and rotation RPM with a simple operation.
It's a basic 3-hole (32mm) shape, but you can change it to an option.
- Operation : Dial and rocker switch.
- Platen RPM : Variable Speed : Main : 50 ~ 400RPM, Head : 0~150RPM
- Geared Motor : Main : 1/2 H/P (600W) High torque DC MOTOR Brushless. Head : BLDC/60W
- Platen : Aluminum 8” (203mm), 10"(254mm), Quick Change Platen, 3EA Sample holder(Size:1½”, 32mm)
- Weight : 65kg
- Voltage : 220V, 60HZ.
- Dimensions : 800 * 600 * 650mm
- Fast workability with Auto stop and belt type.
- Preventing a electrical short with an ABS integrated case.
- Excellent corrosion prevention and durability with SUS (Aluminum part).
- Low noise and semi-permanent using NO Brush Motor.
- Secure safety by applying Slow Start.
- Head Pressure Type : Individual Force.
- Auto Head Polisher is a typical automatic Polishing machine for grinding and polishing.
- It is an equipment with excellent durability using a material such as ABS/SUS/Coating Aluminum.
- With the Slow Start & Auto Stop function, safety and fast working speed can be obtained.
- It is easy to operate by installing a simple switch, can set time, is suitable for the laboratory with low noise, and has a neat design.
- With the application of the Magnetic Plate System, Disc Paper and Cloth for Polishing can be used together without plate exchange.
- Maximize durability by using an on/off switch with excellent waterproof function.
- The initial rotation direction is counterclockwise (ccw), and can be changed clockwise (cw) at the request and the rotation speed (RPM) is Main 50 to 600 RPM, Head 0 to 150 RPM. (It can be changed according to the request)
- Polishing Disc uses basic 8". (10" & 12" is Option Specification)
- WARRANTY: Free A/S if the equipment fails within one year of warehousing.
* Specification
| SM | DM | |
|---|---|---|
| Power Load | Main : 600W / Auto Head : 80W | |
| Current Max | 8A | |
| Dimension | 400 x 600 x 650(mm) | 800 x 600 x 650(mm) |
| Weight | 45kg | 65kg |
| Diameter | 8"(10"-option) | 8"(10"-option) |
| Speed | Main : 45~500rpm/ Auto Head : 0~150rpm | |
| Rotational Direction | CCW/CW | CCW/CW |
| Voltage / Frequency | 220V / 50, 60Hz | 220V / 50, 60Hz |
| Water Inlet | 8mm Air Hose | |
| Outlet | 32mm Spring Hose | |
| Sample Holder | 1 1/2" - 32mm(other Size request) | |
