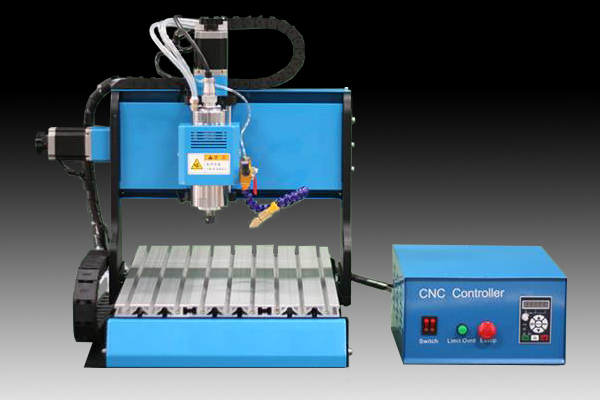

Auto Sample Router (Máy cắt mẫu tự động)
Auto Sample Router is designed in a head mobile structure, and provides a wide work radius than general router.
The dedicated control program can accurately adjust the speed and operation efficiency and quality stability.
In addition, it is excellent space utilization with small structure, and compact design, you can easily apply to various work environments.
*Safety Body is strengthened, stability is strengthened, stable processing tasks.
| specifications | |
|---|---|
| Machine Size | 510 X 610 X 570mm 610 X 710 X 570mm 730 X 910 X 570mm |
| Table Size | 240 X 490mm 360 X 590mm 480 X 790mm |
| Working Size | 190 X 290 X 90mm 290 X 390 X 90mm 390 X 590 X 90mm |
| Table Surface | 프로파일 T-Slot 베드 |
| Transmitting Way | 볼스크류 타입 |
| Spindle | 800w (24,000rpm) 공냉식 고주파 스핀들 |
| Collet | ER11 (Shank max Ø7) |
| Motor | Step Motor |
| Transmitting speed | 3,000 mm/min |
| Repeat precision | ±0.01mm |
| Location precision | ±0.05mm |
| Control System | Mach3 Software(PCNC TYPE) |
| Power | AC220V / 60Hz |
Safety Body
