Microscope

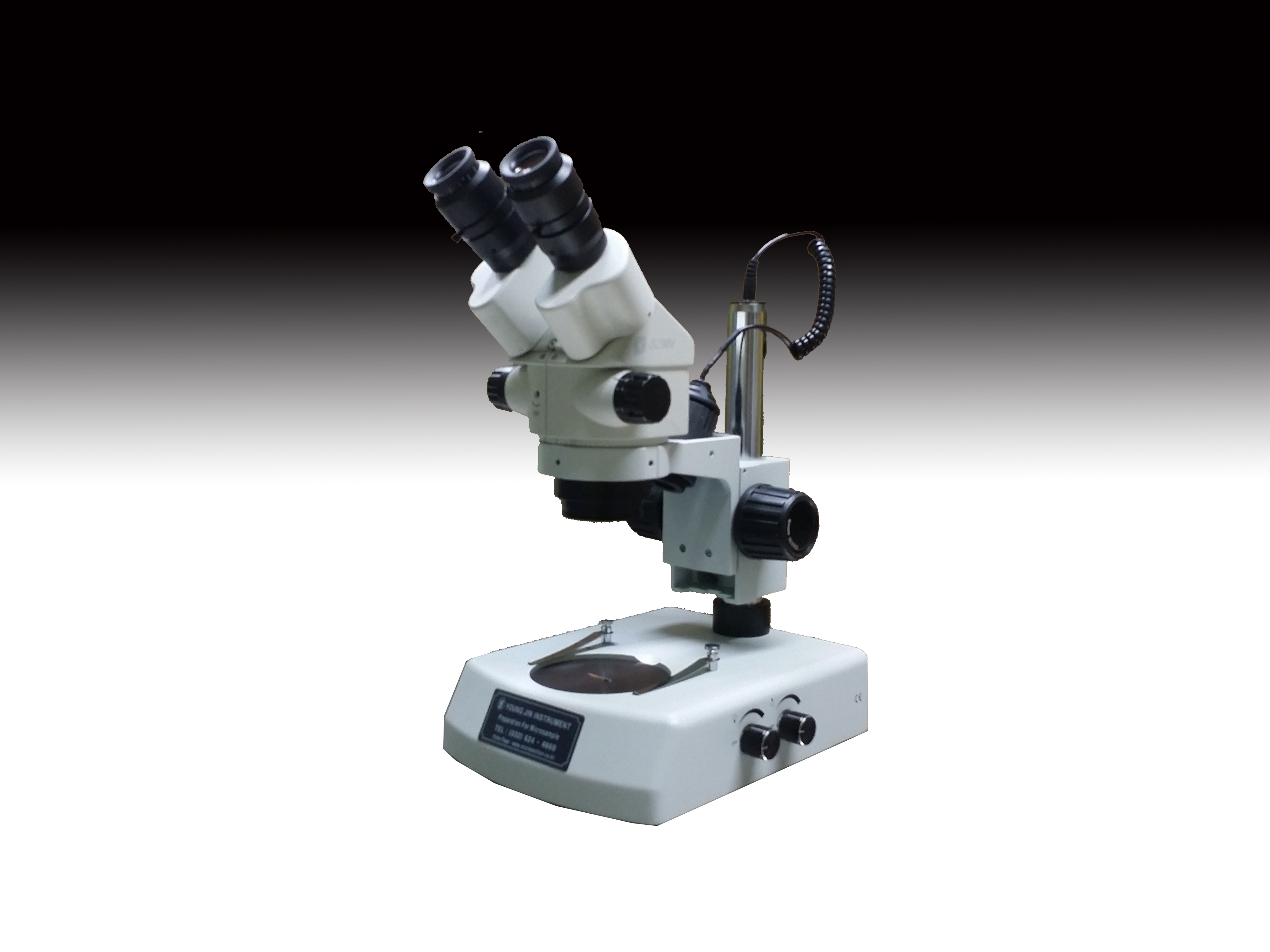

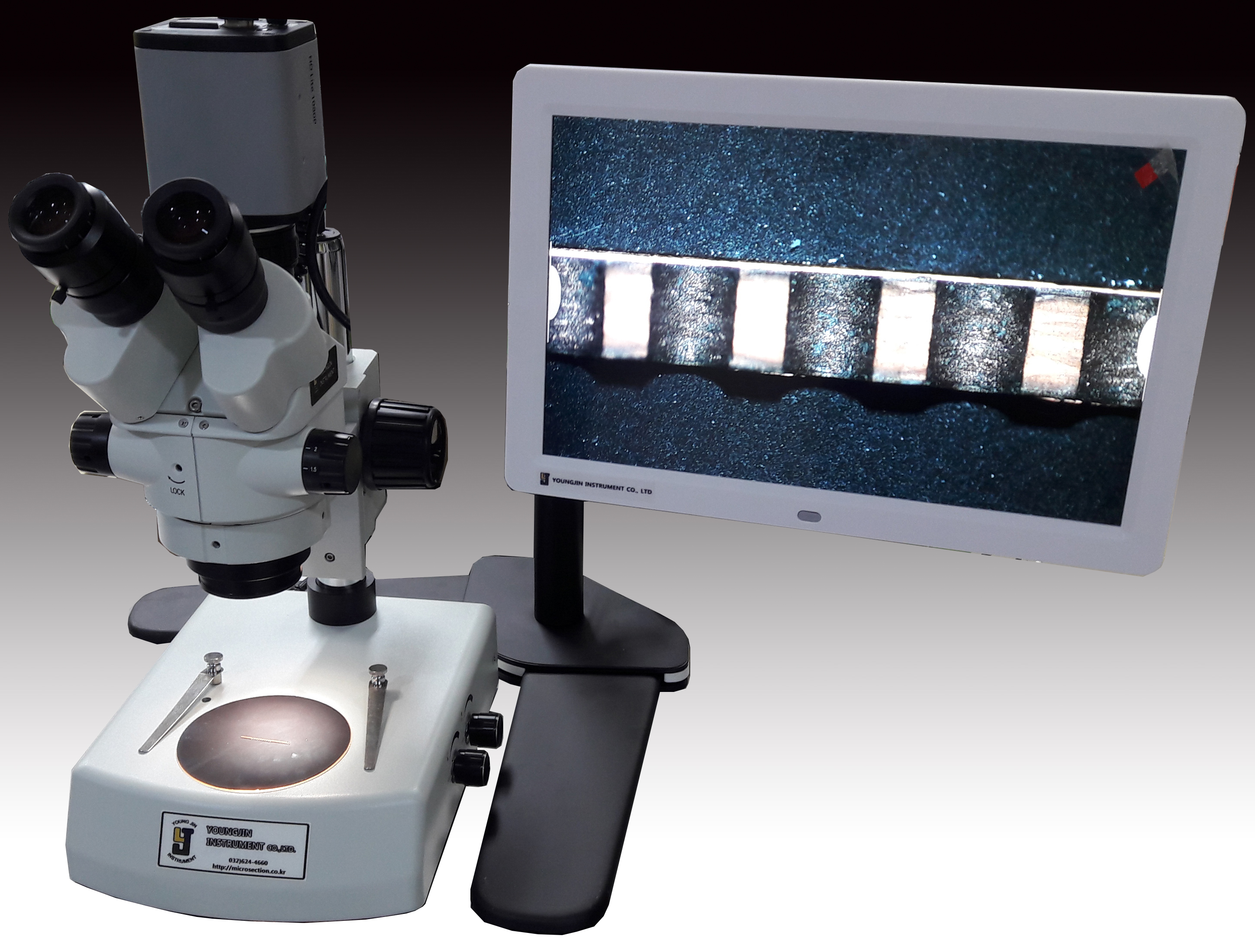

The Plating Backlight Microscope is a microscope model that can be observed simultaneously with the naked eye and monitor, and if only visual observation is used, the fatigue of the eyes and body accumulates due to long-term observation, and it can be observed simultaneously with a monitor, so the fatigue from use is reduced.

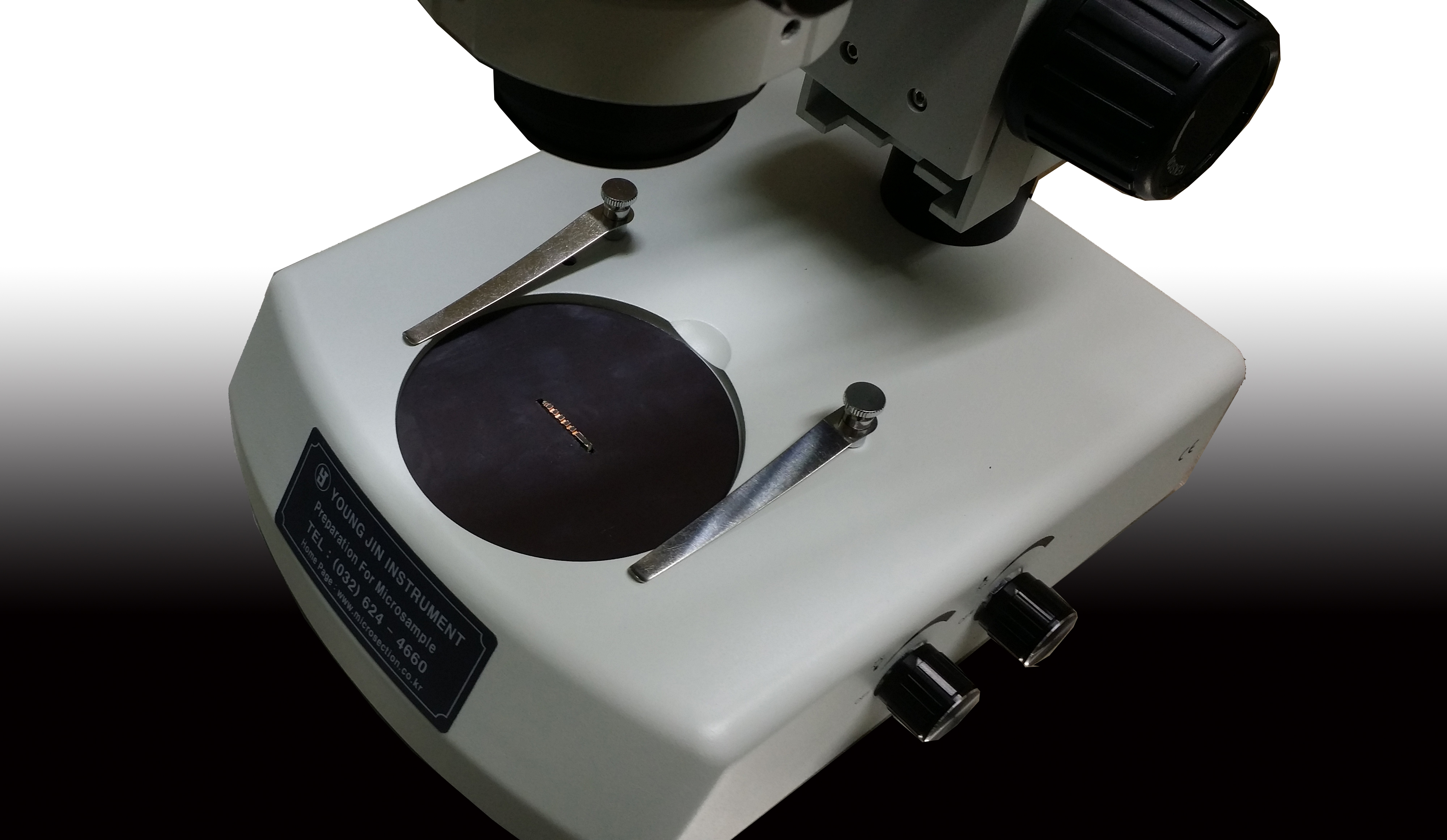

Observation using lower lighting and observation using upper lighting are also possible. Although it is a configuration that is observed using a camera, it is directly connected to a monitor without the need for a PC connection, and there are fewer restrictions on the installation location compared to other configurations.

Clear observation is possible with FHD resolution, intuitive control using a mouse and data storage using a camera's SD Card are easy, and multiple photos can be observed simultaneously with functions such as screen segmentation.

AutoFocus or measurement functions can also be used depending on the camera's options.

Specifications

Magnification : 7~45x(14~90x : option)

Sensor Size : 1/2.5"

Resolution : 1920 x 1080

Frame Rate : 1920 x 1080 15fps

Capture : SD card

Exposure Time : 0.001 ~ 1.5s

Lighting : Halogen or LED(option)
