YB-500M
The YB-500M microscope is a high-spec inverted microscope. This product provides stable performance. Typically used for BrightFiled and DarkFiled observations.The maximum magnification is 1000X, and the observation effect is better.
BF/DF polarization observation is possible and is widely used in metal and electronic fields.

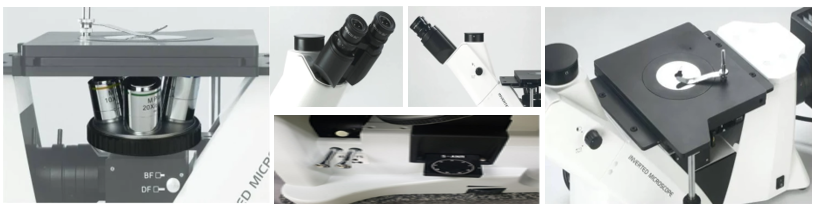

Characteristics
- high-performance optical systems
- Three-eye head (basic), 45-degree angle of inclination
- Optimal electrostatic dust treatment system with less damage to the specimen
- You can move the wealth stand freely, and apply a five-hole rotating plate
- Widely available from reflection transmission observation to polarization observation
- Eye contact: 10X
- High magnification objective lens: 5X, 10X, 20X, 50X, 100X (optional)
- Using 12V 50W Halogen Lighting
- Intuitive external lighting controller applied
- Improve durability and vibration resistance by applying a stone tablet as a base
- Strong durability, beautiful design
- a basic polarizer
- a sample-rotatable auxiliary offering stand
YB-500M Specifications
| category | standard |
|---|---|
| Eyepiece | WF10X/22 mm (adjustable) |
| WF10X/22 mm (adjustable, grid line 0.1 mm) | |
| an objective lens | LM Plan FL BD 5X/10X/20X/50X (For semi-color light purposes) |
| eidentopf Trinocular Head | 30° sloping, 48-76 mm distance between dolls Light distribution: 100:0 (100% for eyepieces), 80:20 (80% for eyepieces, 20% for eyepieces) |
| XY Table | Size: 210 × 180 mm, Moving range: 50 × 50 mm, magnification: 0.1 mm |
| Coaxial roughness and fine focus adjustment unit | Steering stroke: Fine stroke per 10 mm rotation: 0.2 mm microstroke: 2 µm |
| a polarizing device | a polarizer/analyzer |
| Lighting | 12V/50W halogen (input voltage 110V to 240V) |
| Packaging size |
660 * 590 * 325mm |
| Weight | 15kg |
| C-Mount | 0.5X. |
