ITG-B10
It is an equipment that measures the thickness of copper on a PCB or a thin film based on the Electrical Resistance Method.

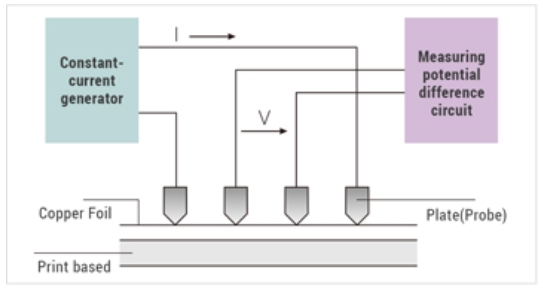

It is a method of measuring by contacting Probe with the copper surface to be measured, operates based on a window operating system familiar to users, and allows more intuitive and convenient operation by applying a touch screen.
| Item | Details |
|---|---|
| Measurement Method | 4pin Probe micro Resistance Electrical Resistance |
| Measurable Sample | Copper layer on PCB |
| Measurable Range | Range 1 : 0.1~10um |
| Range 2 : 10~120um | |
| Measuring Time | 1 sec/point |
| Operating Computer | Lap top computer |
| Measured number as possible | Unlimited |
| Memory capacity | Unlimited |
| Export of Results | PDF, Excel / Excel connect program |
| Accuracy | ±1~3% under with reference to standards |
| Probe Usage | 500,000 times |
| Standard Calibration Sample | Supply of samples certified by the manufacturer. |
