Giới thiệu sản phẩm
Thiết bị đo độ dày

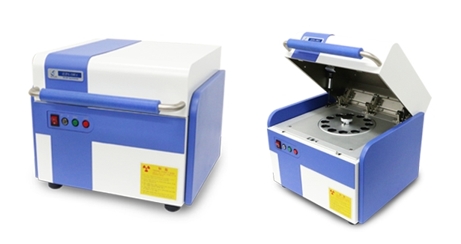

XRF iEDX-100A
작성자 관리자
날짜 2021-09-29 14:37:09
| Item | Details |
|---|---|
| X-ray tube | Rh Target / Ti Target(Sulfur Analysis) |
| Detection System | Si-Pin/SDD(He Purge Option) |
| Energy Resolution | SDD : 125eV FWHM at Mn Kα Sensor areas : 30㎟ |
| Collimator | 1,3,5,8 mm Auto Change |
| Detection Element | Na(11) – U(92) – He Purge Option |
| Sample Type | Solid / Liquid / Powder |
| Size of the sample chamber | 310 X 284 X 100mm or 300 X 320 X 155mm (W x D x H) |
| Key Features |
Sulfur in Oil Analysis(ASTM D4294) RoHS + Halogen Free simultaneous measurement,
Antimony(Sb), Tin(Sn), Sulfur (S) can be screening
Qualitative and Quantitative analysis with co- exist elements |
| Camera Magnification | 10~15x |
| Safety | 3 point interlock |
| Type of Report |
Excel, PDF Custom form |
| Key Benefits |
Sample pre-treatment is not required non-destructive inspection Simultaneous multi-element analysis. (Solids, Liquids, Powder) High senstive and High Precision Remote Suppory by Online Option : 10ch, 12ch Auto Sample Changer |
| Application |
Sulfur in Oil Analysis
Product screening international environmental regulations
(RoHS, WEEE, ELV compliant) Hazardous material(Cr, Br, Cd, Hg, Pb, Cl, Sb, Sn, S) Screening equipment
Hazardous substances checks that are contained in the toy’s
accessories, precious metals Recycling, Analysis of the lubricating oil & environmental pollutants
Research and education for elemental component analysis
Electricity, Electron, Automobile, Precious metal, Injection Plating, Packaging etc
|
