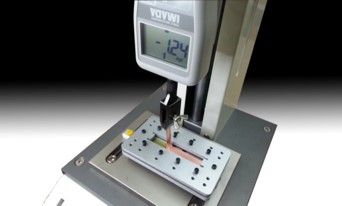

Push/Full Tester(Tensile Tester)
It is an equipment capable of measuring the tensile force or compressive force of a test sample. Using electric stands, automatic and semi-automatic tests can be performed.
It is possible to order a separate jig according to the type and size of the sample and the experimental method.
The maximum load of the stand is 100 kgf, the stroke is 400 mm/min, and the controller of the stand can be operated to adjust the automatic, semi-automatic, and stroke speed.
| 5N | 50N | 500N | |
|---|---|---|---|
| Maximum Load | 500gf | 5kgf | 50kgf |
| Display range | 5.000N(500.0gf) | 50.00N(5.000kgf) | 500.0N(50.00kgf) |
| Resolution | 0.001N(0.1gf) | 0.01N(1gf) | 0.1N(10gf) |
| Unit | kgf, N, blf, / gf, N, ozf | ||
| Display | 4 digits LCD, Units, Mode, Warning | ||
| Method | Track or Peak Mode | ||
| Time | Max. 1000 time/sec | ||
| Overload capacity |
~5N : 150% of F.S (LCD Starting from 110%)
20N ~ : 200% of F.S (LCD Starting from 110%)
|
||
| Funtion |
Peak/Track measurement mode, screen up and down
Comparison function, two sampling rates.
|
||
| Power | NiMH Rechargeable Battery(4 pcs), AC Atapter | ||
| Battery | Max 10 hours | ||
| Temperature | 0~40℃ | ||
| Size/Weight | 186 x 66.2 x 32.8 mm / 약420g | ||
| Output | RS232C | ||
| Accessories | Main body, power adapter, Menual | ||
