X-eye PCT
작성자 관리자
날짜 2023-07-20 17:43:48
Inspection system for 3D X-ray CT able to analyze defected area accurately by precise movement of axis with high polished Antivibration
table. High-power X-ray Tube of max. 450kV and large area Flat Panel Detector(FPD) of max. 16 inches can be installed
depending on the sample. Customized 3D CT equipment is available with selecting main parts by customers depends on thier needs
for size and material.
- Enable control of precise movement of axis
with Anti-vibration table - Various options for High power X-ray Tubes
- Enable inspection of large sized products
| General Product Features | |
|---|---|
| X-ray Tube | 225㎸ / 3,000㎂ |
| Min Resolution | 6㎛ |
| Table Size | Ø 600mm x 900Lmm |
| AXIS | X, X-d, Y-t, Y-d, Z, R |
| Detector | 16 inch FPXD |
| CT Scan 방식 | Cone beam CT |
| Dimension | 2,680(W) x 1,570(D) x 2,330(H)mm / 8,000kg |

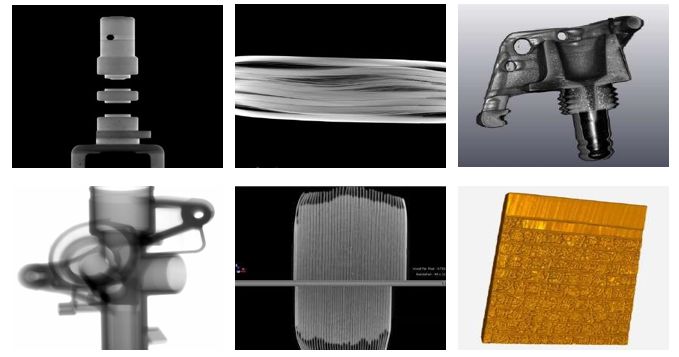

X-ray Image
