Metallographic Equipment

  Semi Auto Router It is an equipment for cutting samples on a panel-type PCB board. Using the X and Y tables and sample fixing jigs, samples can be collected more precisely than Sample Router, and PCB products equipped with components can be smoothly cut using fixed jigs. The dust collecting device next to the spindle removes dust generated when cutting, is easy to operate by...

  Sample Router   The Sample Router is a router equipment for cutting samples on a panel-type PCB board. It is manufactured with a structure that is less affected by the board size, making it suitable for sampling on boards of various sizes, ranging from small boards to 500x500 boards. Dust generated when cutting can be effectively removed with a dust collector under...

Precision Low Speed Saw  It is a type of cutter suitable for samples vulnerable to excessive heat and friction caused by high-speed cutting or samples that require small and precise work. A sample fixing jig capable of fixing various types of samples and a weight control method using gravity are used. It is a method of supplying cutting fluid using a rotating blade, and it is no...

  Diamond Band Saw It is mainly suitable for cutting thick circuit boards of over 0.5T  or materials with small size and strong hardness. Cutting various materials such as PCB substrate, ceramic, glass, etc. Free cutting without distinction between straight and curved lines. Keep clean by putting a coolant at the bottom of the equipment. Fast and safe usin...

  Diamond Trim Saw It is mainly used for cutting thicker boards of 0.5mm or smaller and harder materials. The operator can move the sample to cut it in the desired direction, and vertical and horizontal work using an auxiliary guide is possible. Characteristics Secure stability with Diamond Blade It is possible to quickly cut a PCB substrate, ceramic, semiconducto...

Precision Low Speed Saw  It is a type of cutter suitable for samples vulnerable to excessive heat and friction caused by high-speed cutting or samples that require small and precise work. A sample fixing jig capable of fixing various types of samples and a weight control method using gravity are used. It is a method of supplying cutting fluid using a rotating blade, and it is no...

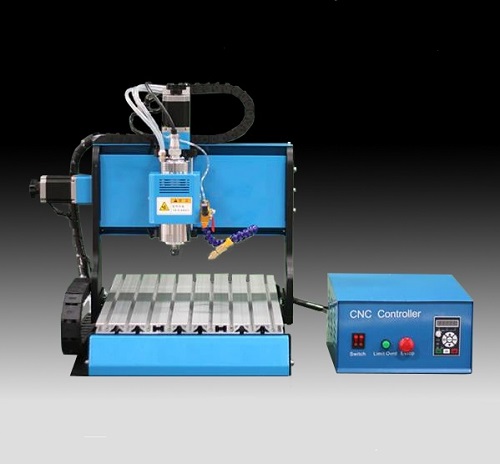

  Auto Sample Router

  Cutting Fluid Cutting Fluid is a kind of cooling water and lubricant designed for cutting processes using Diamond Blade. Among the various cutting oils, its Cutting Fluid is a water-soluble synthetic coolant that is easy to clean and manage after cutting and is effective in improving Blade's condition and life extension. Excellent processability of Diamond Blade. ...

    Dressing Stick It is used to sharpen the outer layer of the blade or remove adsorbed foreign materials using a Dressing Stick when the blade is worn or adsorbed during cutting using Diamond Blade. The use of the dressing stick helps maintain the cutting capacity of Diamond Blade and its service life.

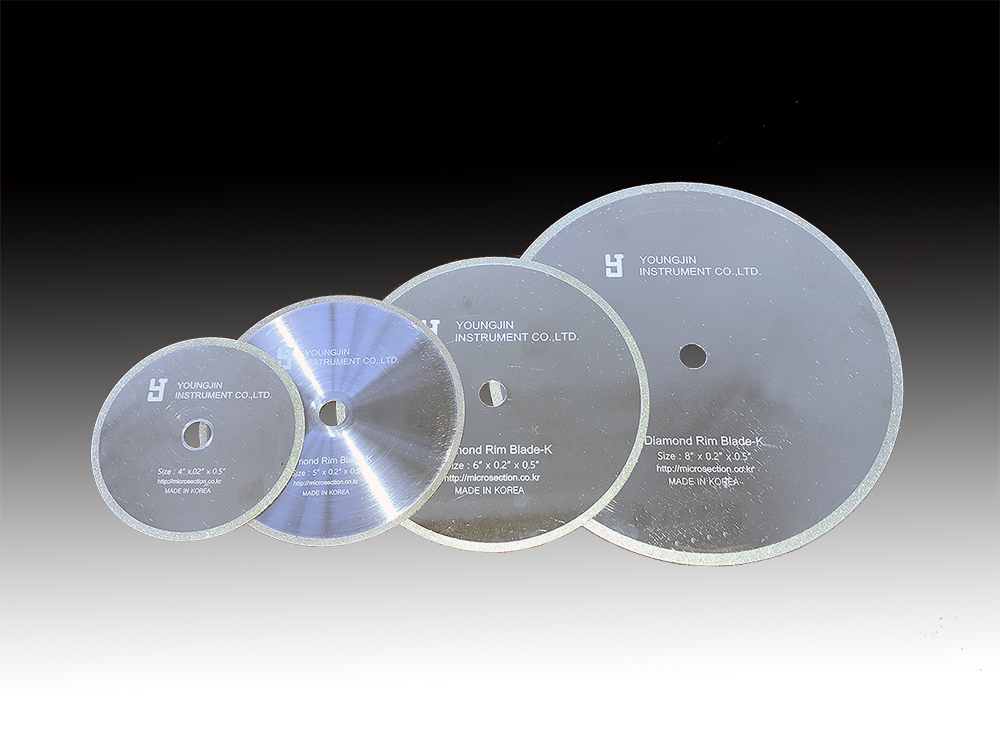

  Diamond Blade  Diamond blade for precise cutting. Cost reduction because it can be used for a long time. Highly reliable work is possible by cutting the sample cleanly. Diamond Blades Metal Bond   Diamond Metal Bond Blade provides blade durability by curing a metal mixed with diamond abrasive at high temperature and pressure. It is generally s...

  Punching Machine   It is a manual press for an RPCB substrate and can be used for samples ranging from 0.5 to 1.6 mm. With a manual press for an RPCB substrate, it is a press equipment that can be used for samples less than 0.5 to 1.6 mm, and the auxiliary guide can be applied to work without damage to the product even when cutting a large sample. The sample ...

  Hand Press(FPCB) As a manual press for an FPCB substrate, it is a press equipment that can be used for samples of less than 0.1t to 0.5t, and an auxiliary guide is applied, so even when cutting a large sample, it is possible to work without damage to the product. For the efficiency and convenience of the work, the main body is formed in a 'c' shape, so the work de...
