Mounting Material

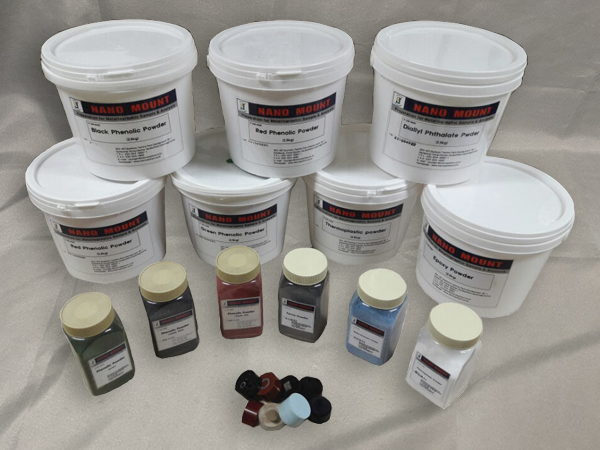

  Hot Mounting(Compression Mounting)   TIn the case of hot mountings, where thermoplastic powder, phenolic powder, and epoxy powder are mainly used, the material is type 1, and curing is carried out using a separate dedicated mounting machine. At this time, hot mounting cannot be applied to samples that are feared to deform the sample because high-temperature and hig...

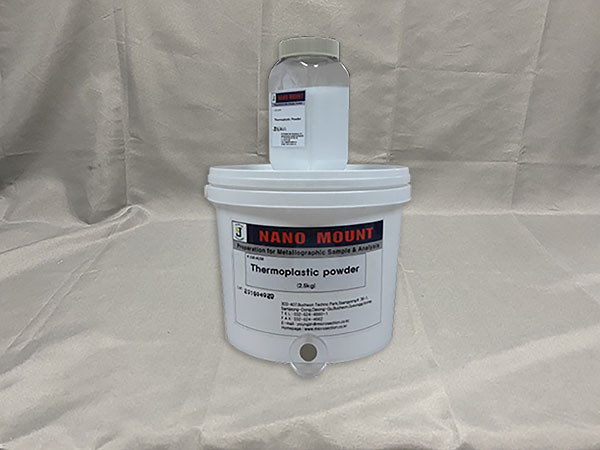

    Thermoplastic Powder Thermoplastic acrylic resin. Clear transparent color accurately distinguishes the substance of the sample. Separate mounting equipment is required for specimen molding. Samples are molded with high heat and pressure using Mounting Press equipment.   Item Phenolic Themoplastic Epoxy Diallyl Phtha...

  Conductive Powder Apply conductivity to thermoplastic resin. Used for electrolytic polishing and SAM analysis by adding iron/carbon. Separate mounting equipment is required for specimen molding. Hot Mounting Resin Samples are molded with high heat and pressure using Mounting Press equipment.   Item Phenolic Themoplastic Epoxy D...

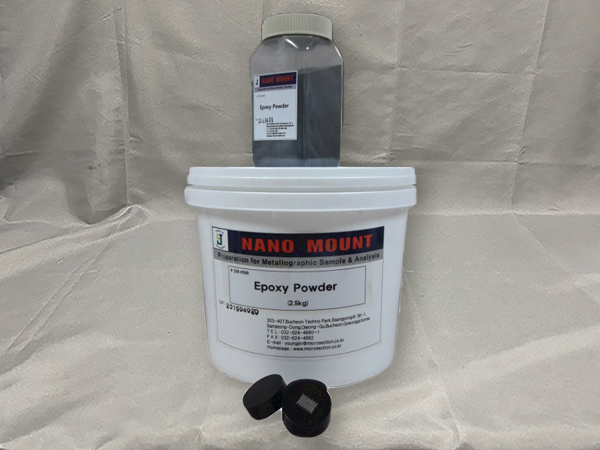

    Epoxy Powder Thermosetting epoxy resin. A product with high adhesion. Separate mounting equipment is required for specimen molding. Hot Mounting Epoxy Resin Using Mounting Press equipment. Samples are molded with high heat and pressure.   Item Phenolic Themoplastic Epoxy Diallyl Phthalate Packing...

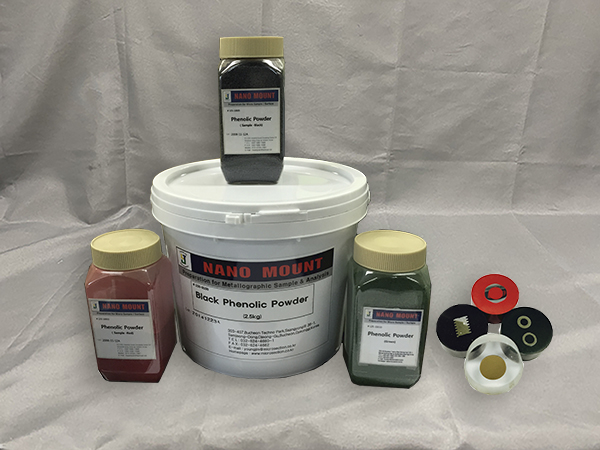

    Phenolic Powder (Black, Green, Red)   Thermosetting phenolic resin. It has excellent flat surface and edge shape with high hardness. Separate mounting equipment is required for specimen molding. Hot Mounting Phenolic Resin Powder. (Black, Green, Red) Using Mounting Press equipment. Samples are molded with high heat and pressure. ...

    Poly Clear Resin & Hardener Room temperature curable polyester resin. Clear and transparent molds are created. Hardening time is about 30 to 1 hour. Item Acryl Mold Self Clear Acryl Clear Epoxy Product Poly Clear Mold L/T H/T-50 Fast Cure Packing unit Resin 2.5kg, 1kg ...

    Epoxy Mold, L/T, H/T-50, Fast Cure The room temperature/thermal curable epoxy resin has a very low shrinkage rate and excellent adhesion to the sample, so it is mainly used for close observation.It is advantageous for observing the sample by creating a very transparent molder. There is a basic type, Epoxy Mold (about 8 hours), Epoxy Fast Cure (about 2 hours), which...

    Acryl Clera Powder & Liquid It has transparency enough to observe the internal sample after curing with a room temperature curable acrylic resin. It has a high curing speed of about 10 minutes at room temperature and has excellent internal permeability and adhesion, and thus can be used for microsection of various samples. Acryl Clear, a cold mounting, is suita...

    Acryl Mold Powder & Liquid    After curing with a room temperature curable acrylic resin, there is no transparency enough to clearly observe the internal sample, but the approximate shape of the sample has transparency that can be observed. It has a fast curing speed within 10 min at room temperature and excellent internal permeability and adhesi...

    Cold Mounting(Room temperature) It is a resin used to mold products sensitive to heat and pressure, cured at room temperature without the need for separate equipment, and easy to use for mounting various samples. There are Acryl-based resins that have advantages of short curing time and convenience of use, Epoxy-based resins that take a long time but have excell...
