Consumables

  Cutting Fluid Cutting Fluid is a kind of cooling water and lubricant designed for cutting processes using Diamond Blade. Among the various cutting oils, its Cutting Fluid is a water-soluble synthetic coolant that is easy to clean and manage after cutting and is effective in improving Blade's condition and life extension. Excellent processability of Diamond Blade. ...

  Fine Finish   Fine Finish is an abrasive that has an excellent effect on fine polishing used in the last work of Fine Polishing. Since drying takes place slowly, it is suitable for long hours of work. It is easy to clean the sample before and after drying. In addition to the general surface polishing effect, it also has the effect of observing microstructures. ​Alt...

  VTM-32, 25(for Uplight Microscope)   VTM-32 and 25, which are horizontal jigs for uplight microscopes, are auxiliary equipment used for microscopic analysis after grinding and fine polishing operations. It is a device that can compensate for the superposition distortion caused by the horizontal difference between the analysis surface and the opposite surface. Th...

  Plastic Mounting Cup It is a top and bottom separable mounting cup made of plastic material. There is almost no deformation due to resin, so it can be used for a long time. There is a side that is somewhat difficult to separate the mold due to adhesion during resin curing. It is easy to attach if the lower part is made of plastic material and an adhesive, etc. should be used...

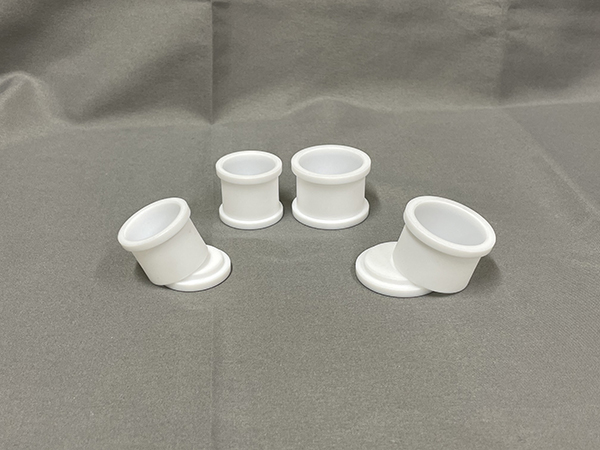

  Teflon Mounting Cup It is a top and bottom separable molding cup made of a Teflon material. It can be used permanently because there is no worry about deformation due to resin. The separation of the mold by adhesion after resin curing is relatively difficult compared to the Rubber Cup. If necessary, the Mold Release may be used to reduce the inconvenience of separation. ...

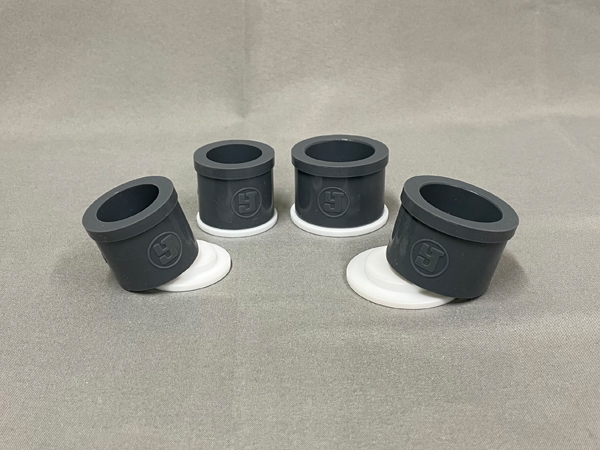

  R/T Mounting Cup It is a top and bottom separable mounting cup. The upper part is made of a rubber material, so it is easy to separate after resin curing, and the lower part is made of a Teflon material and is easy to use an adhesive, etc. besides the use of a molding clip when sample holding is performed. R/T Mounting Cup : Up/down detachable 25mm, 32mm. (Upper Rubb...

  R/R Rubber Mounting Cup The R/R Rubber Mounting Cup is a top and bottom separable cup that generally has a long life and can be used semi-permanently in some resins. Since there is no adhesion to Resin, it is easy to separate molding after resin curing. R/R Rubber Mounting Cup : Top and bottom detachable cups 25mm and 32mm.

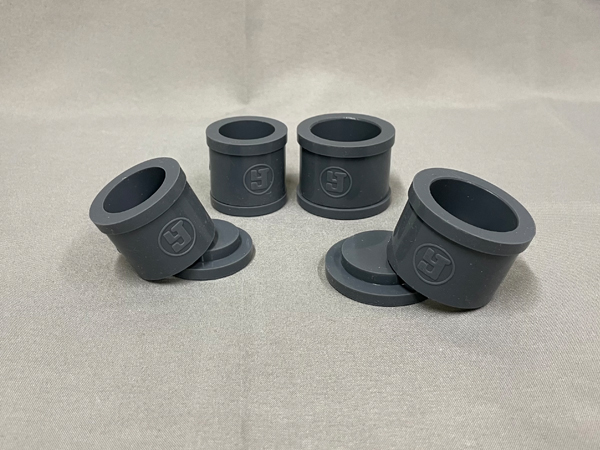

  Rubber Mounting Cup The Rubber Cup generally has a long lifespan and can be used semi-permanently in some resins. Since there is no adhesion to Resin, it is easy to separate molding after resin curing. Circular Rubber Mounting Cup - Integral 25mm, 32mm, 38mm, 50mm Square Rubber Mounting Cup - Integral 50x50mm, 70x70mm   .

  Disk Paper   Disk paper, which is most commonly used for grinding operations, is divided into Plain and PSA according to the attachment method. In the case of the Plain type, Guide-Ring is used when fixing to the polisher, and the PSA type is attached to the Magnetic Plate. Disk Paper Grid Standard (8",10",12") (PLAIN, PSA)  P120 - ...

  Polishing Pad It should be used according to each application in consideration of the type of abrasive, particle size, sample treatment step, or sample material, composition shape, and observation point.   Remark - All products have 8", 10", 12", and PSA and MAG types. - Please contact us for Fine Polishing Cloth used for various mate...

    Polishing Lubricant   Lubricant acts as a lubricant and coolant for diamond-based abrasive for fine polishing, and there are types such as green and blue, and it helps reduce friction with the abrasive pad and surface treatment, maximizing the polishing effect and reducing damage to the abrasive pad.

    Diamond Slurry The slurry used in the Fine Polishing step by mixing cooling lubricating components with fine diamond particles has an excellent effect on pushing and fine surface treatment which may be caused by a sample material or work friction in a general disk paper. Diamond abrasive agents such as Fine-DT, DO, DH, and DQ should be applied by matching them a...

    Fine Polishing During the grinding operation, factors that hinder accurate observation and measurement of samples, such as pushing and surface scratches, may occur due to friction with disk paper or the composition material or characteristics of the sample. These symptoms must be resolved in a polishing operation to enable accurate and precise observation, and t...

  Magnetic System For commonly used disk paper, the disk paper is fixed to the polishing machine plate using Guide Ring. In this case, it is necessary to detach and attach the guide ring when replacing the paper. The Magnetic System is used to improve convenience and speed when working on Grinding & Fine Polishing. When an adhesive disk paper (PSA type) is attached to a...

Diamond Disk It is recommended to use only for grinding purposes for soft materials such as electronic parts and nonferrous metals, and to use grinding and polishing for iron and high hardness metal materials. Diamond particles are fixed with metal bonds or resin bonds, which are more durable than regular Sic disk paper (about 100 sheets of durability compared to Sic paper). Water ...
